Name: Industry Or Restaurant Cold Storage Room 05mm Thickness Coated Sheet
Brand: Green Health
Price: 1 USD

Brand Name : Green Health

Model Number : CR-100

Certification : CE,Rohs

Place of Origin : China

MOQ : 1 pc

Payment Terms : T/T, L/C

Supply Ability : 800pcs per month

Delivery Time : 15 days

Packaging Details : Wooden packing

Panel Thickness : 75mm/100mm/120mm/150mm/200mm

Temperature : -20C to -2 Degree

Thickness coated sheet : 0.5mm

Material : PU, Coated Sheet, Copper Pipe

Rate Voltage : 220v-380v/50Hz

Refrigerant : R404a

Room Size : 5000x8000x2500mm

Control box : Yes

Contact Now

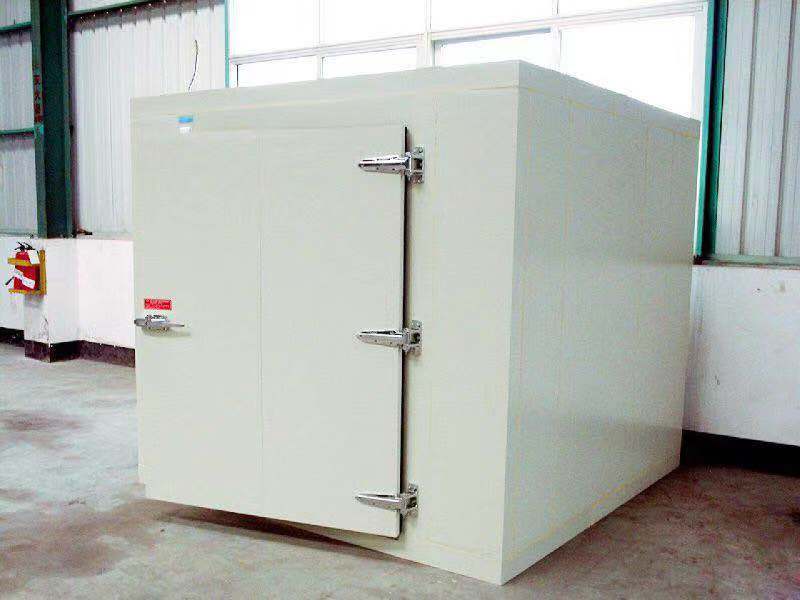

Restaurant Application Industry Walk In Refrigerator Chiller Cold Storage Room

Walk In refrigerator Parameters:

Product Name	Walk in Refrigerator Room
Dimension	5000x8000x2500mm
Cold room Temperature	-20 to -2 degree
Refrigerant	R404a
Compressor unit	Copeland/ Famous Brand/Panasonic
Panel thickness	120mm
Copper Pipe	Yes
Rate VOltage	220v/380v-50hz

Industry Or Restaurant Cold Storage Room 0.5mm Thickness Coated Sheet

Walk In Freezer Features:

# The walk in freezer consist of PU panels, compressor units, evaporators and spare parts like copper pipe etc..

# The engine compressor unit we usually use copeland/Famous Brand brand, base on different size of cold room need different HP.

# High density of polyurethane as material of PU panel----42KGs per CBM to 45KGS per cbm;

# Temmperature can be positive or negative depends on customer for different fruit storage.

# The machine of rate voltage standard one is 220v -380v/50Hz, 60Hz is also available

Cold Room Panel Information
Material	Core Material	Polyurethane
	External Material	Painting steel sheet/SS/Aluminum/Galvanized sheet(Option)
Thickness	Core Thickness	100mm, 120mm, 150mm, 200mm(Option)
	Extenal Thickness	0.726mm-1mm
Cold Room Panel Density		42KG/Cubic Meter
Compressor Brand		Panasonic, Copeland, Famous Brand(option)
Fire Rating		B2, (B1 is coming soon)
Bonding Strength		≥0.100MPa
Fruit, Vegetable, Seefood		Suggest 100mm, and temperature -5℃ to 20℃
Fish,Chicken, Beef, Mutton, Seafood		Suggest 150mm, and temperature -18℃ to -25℃
Quick frozen meat, seafood,		Suggest 200mm, and temperature -35℃ to -40℃

Industry Or Restaurant Cold Storage Room 0.5mm Thickness Coated Sheet
