Fruit/Vegetable Cold Storage Room with Sliding Door or Swing Door
Features:
1. Copeland/Famous Brand Compressor.
2. High-thread series of low-temperature DL evaporator
3. Danfoss high-end expansion valve. (Series expansion valve fot freezer, capillary cut for cooler)
4. Full computer control system (automatic control).
5. Cooper piping tube + frozen oil + cooling of the refrigerant 404A +silver eletrode + Insulation.
Condensate water processor.Packing+carton box/wood box+certification
The price is our weapon,quality is our life.To save the cost of investment and operating costs for our client,12
which is the goul that we always work for.For the better quality,We continue to innovate.

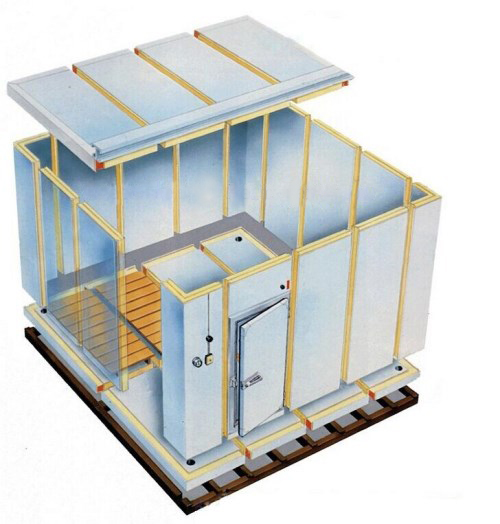

Cold Room Panels
Panel thickness we can provide 50mm/75mm/100mm/120mm/150mm/200mm for option,
but most popular thickness is 100mm.Different temperature need different pane thickness.
Temperature we can make it 2~8℃,-18℃,-35℃ and others.
Could you please provide information as below when you send the inquiry:
1. Room size:'m" (Length width heigh)?
2. What kind of goods will put into the room? (fresh or frozen)?
3. Port name and country name? How about industry voltage?
Specification
1. Cold Room: Suitable temperature 0℃ (High Temperature)
①Boay material thick: 75mm, door: W0.8*H1.8m
②Copeland/Famous Brand compressor
| Cube m³/Dimension | Unit power/horse power |
| 10 (2m*2m*2m) | 1.5HP |
| 20 (3m*2.7m*2.5m) | 2HP |
| 30 (4m*3m*2.5m) | 2HP |
| 40 (4m*4m*2.5m) | 3HP |
| 50 (5m*4m*2.5m) | 4HP |
| 60 (6m*4m*2.5m) | 4HP |
| 70 (5.6m*5m*2.5m) | 5HP |
| 80 (6.4*5m*2.5m) | 6HP |
| 90 (6m*6m*2.5m) | 6HP |
| 100 (5m*8m*2.5m) | 7HP |
2. Frozen Room: Suitable temperature -18℃ (Middle low Temperature)
① Boay material thick: 100mm, door: W0.8*H1.8m
② Copeland/Famous Brand compressor
| Cube m³/Dimension | Unit power/horse power |
| 10 (2m*2m*2m) | 1.5HP |
| 20 (3m*2.7m*2.5m) | 2HP |
| 30 (4m*3m*2.5m) | 4HP |
| 40 (4m*4m*2.5m) | 5HP |
| 50 (5m*4m*2.5m) | 6HP |
| 60 (6m*4m*2.5m) | 7HP |
| 70 (5.6m*5m*2.5m) | 8HP |
| 80 (6.4*5m*2.5m) | 9HP |
| 90 (6m*6m*2.5m) | 10HP |
| 100 (5m*8m*2.5m) | 11HP |
3. Quick-freezer, ultra low, temperature -30℃
①Boay material thick: 150-200mm, Size can customize for you
Details:
 | Cold Room Panels
1. PU Panels for wall, ceiling and floor
1) Density: 43KGS
2) Cam Lock design
3) Fire resistance According to B2 of GB 8624-1997
4) Packing with Bubble film |
Cooling Machine
1) American Copeland/Famous Brand refrigeration unit
2) Horse power factory standard
3) Power supply: 220v/380v, 50hz/60hz
4) Air cooled condenser
5) Refrigerant: R404a |  |
 | Air Cooler
1) Brand Kewely
2) fast cooling,auto defrost
|
| Accessories: Hardware, manual stabilizer, expansion valve, tem-balance window, insulation copper piping, moisture-proof cold light, digital temperature control system and so on |
|
